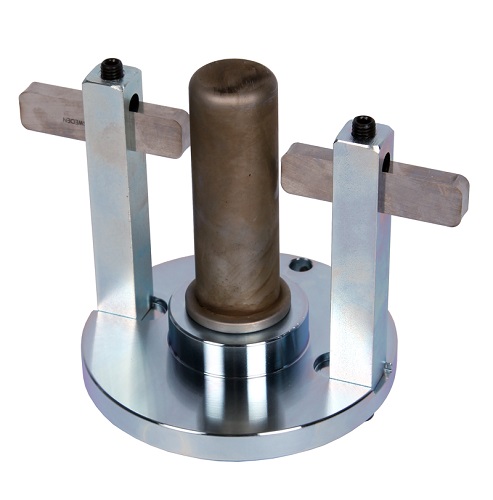

External and Internal Skiving Tool
A unique tool for simultaneous internal and external skiving which minimize time consumption. This skive tool can only be used with our skiving machine TwinSkive 5-50. It is suitable for spiral hoses with 4-6 reinforcement layers from 1/2" to 2". A complete tool consists of a OST tool holder, a mandrel, two OST short or long arms, two external skiving knives and one internal skiving knife.

TECHNICAL DATA
Material (Holder): Steel zinc plated
Material (Mandrel): Steel hardened
Adjustable (internal skiving depth): 1 - 6 mm

DESIGNATION
OST tool holder (one for each dimension): 9025-16-00
OST short arm 95 mm (2pcs/tool): 9025-16-01
OST long arm 118 mm (2pcs/tool): 9025-16-02
External skiving knife: 9022-00-03
6 mm internal skiving knife, for 1/2": 9025-01-06
8 mm internal skiving knife, for 5/8" and 3/4": 9025-01-08
10 mm internal skiving knife, for 1" and 1 1/4": 9025-01-10
10 mm internal skiving knife, for 1 1/2" and 2": 9025-02-10

MANDRELS
OST mandrel 1/2": 9025-16-08
OST mandrel 5/8": 9025-16-10
OST mandrel 3/4": 9025-16-12
OST mandrel 1": 9025-16-16
OST mandrel 1 1/4": 9025-16-20
OST mandrel 1 1/2": 9025-16-24
OST mandrel 2": 9025-16-32
