PowerSkive 5-50

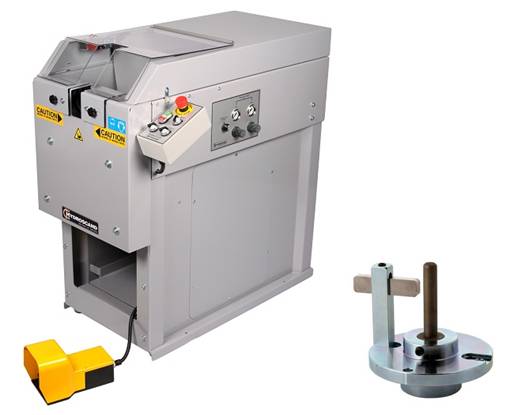

Hydroscand - PowerSkive 5-50, Skiving and Inserting Machine

A semi-automatic PLC-controlled skiving machine.

Quick, reliable and easy to use. A centering system assures that the hose is correctly aligned during the entire skiving and inserting process. PowerSkive 5-50 can also be used for inserting fittings.

Advantages
- PLC-controlled
- Eliminates work-related injuries
- Great increase of production capacity
- Automatic self-centering system
- Adjustable speed
- Adjustable pressure
- Waste collection for easy disposal

TECHNICAL DATA
Hose capacity: 3/16" - 2"
Skiving and Push-on capacity: 400 - 600 pcs/hour

DESIGNATION
PowerSkive 5-50 0,75kW 550rpm: 9082-03-00
PowerSkive 5-50 0,75kW 700rpm: 9082-03-01

ACCESSORIES
External skiving tool, 3/16" - 2": See separate specification
Internal skiving tool 3/8" - 2": See separate specification
Push-on tool for straight and elbow fittings: See separate specification
