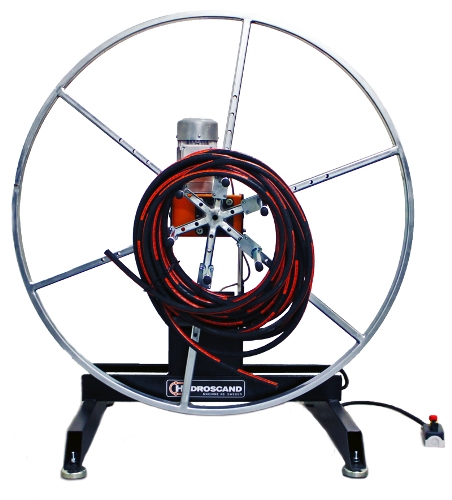

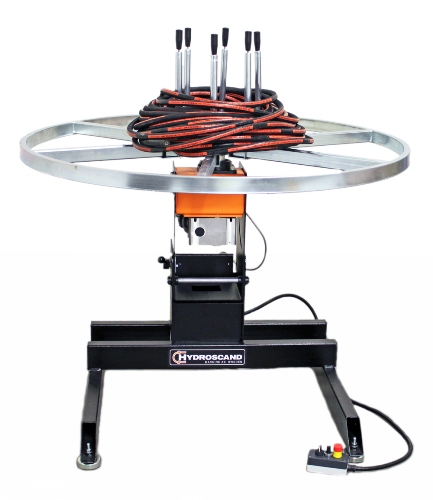

AutoReel Dynamic

Hydroscand - AutoReel Dynamic - Vertical or Horizontal, A motorized reel for hose coiling with variable speed control in both directions, ideal when you are cutting long hose lengths and winding is neccesarry. You can use the AutoReel Dynamic as vertical or horizontal.

Max Load of reel: 800 kg
Maximum hose size in inch: 1/8” - 3”
Machine control: Remote control / foot swich as option
Motor size in kW 1 phase: 0,55kW
Colour: Black / Orange

Base ”Foot print”: 1140x940 mm
Height to vertical reel: 985 mm
Reel Diameter: 1410 mm ( 1210 and 1610 mm as option)
Weight: 115 kg

AutoReel Dynamic 1410 RAL9005: 9004-01-05
