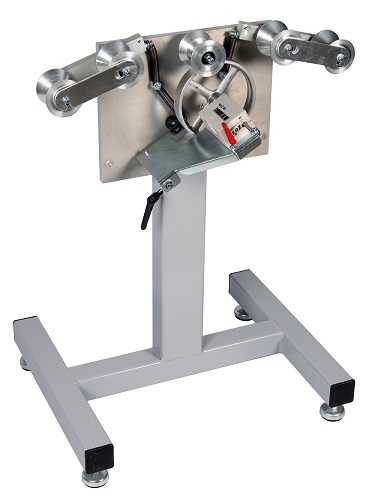

MeasureMan 5-50

Length measuring system

Hydroscand - MeasureMan 5-50 is a length measuring system for hoses with a capacity of 3/16" to 2". It is self adjusting to hose size and perfectly centered during operation. The ultimate tool for hose reselling used in combination with our hose reels; HoseReel 1, AutoReel H and AutoReel V. A stand is available as option.

TECHNICAL DATA
Hose capacity: 1/8" - 2"
Colour: Zinc plated / Light grey

DIMENSIONS
Width: 600 mm
Height: 360 mm
Dimensions stand (adjustable height): 570 - 950 mm
Weight: 8 Kg

DESIGNATION
MeasureMan 5-50: 9004-00-04
Stand for MeasureMan 5-50: 9004-00-06
