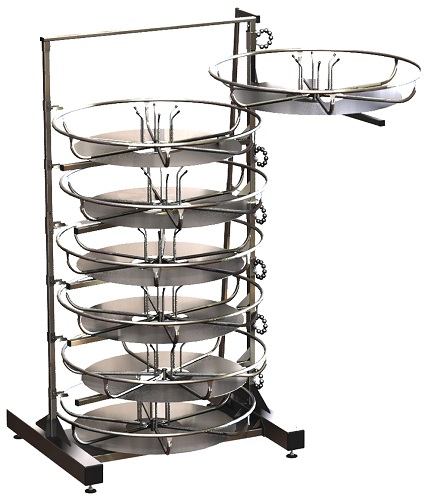

Hydroscand - HoseReel 7, This seven stage hose reel
helps keeping the workshop floor free from hose coils
and it significantly reduces the time when cutting hose.
No more running back and forward between the pallet
racking and the cutting machine. Every stage except the
bottom one can be swung out horizontally to load a new
coil. Because of the new design with the result of
smaller reels there is a big saving on freight. To
further increase the flexibility of the HoseReel 7, a
wheel kit is available as an option.
TECHNICAL DATA
Hose capacity: 3/16" - 1 1/4"
Max. load per
reel: 80 Kg
Max. outerdiameter of coil: 900 mm
Min. inner diameter of coil: 250 mm
Max height of
coil: 250 mm
Colour: Zinc plated
DIMENSIONS
Width: 1 170 mm
Height: 2 230 mm
Depth: 1 000 mm
Weight: 148 Kg
DESIGNATION
HoseReel 7: 9004-00-07
ACCESSORIES
Wheel kit: 9004-01-21
