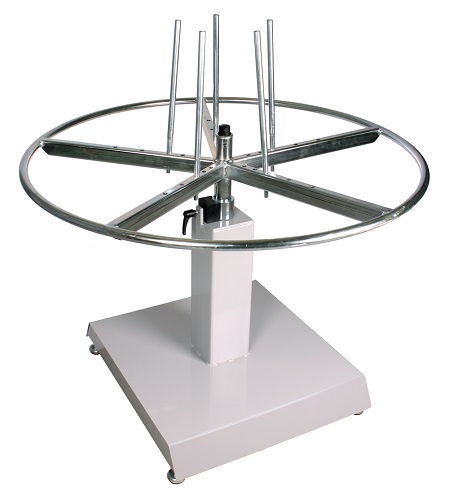

HoseReel 1

Hydroscand - HoseReel 1, This one-stage hose reel is designed for hoses and cables. This table is adjustable to fit the center of the coil. It should preferably be placed 1-1,5 meters from the cutting machine.

TECHNICAL DATA
Hose capacity: 1/8" - 3"
Max. load of reel: 500 Kg
Colour: Zinc plated/Light grey

DIMENSIONS
Width: 1 200 mm
Height, hose stage/reel: 830 mm
Base: 700 x 800 mm
Weight: 40 Kg

DESIGNATION
HoseReel 1: 9004-00-03
