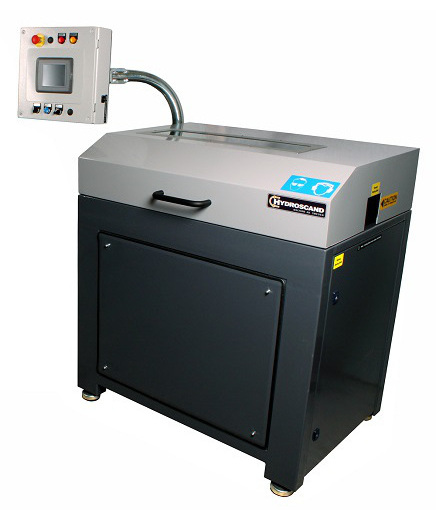

Hydroscand - AutoCut 5-32CTS Automatic Hose
Cutting System
AutoCut 5-32C is an
automatic cutting machine for textile and steel
reinforced hoses. The machine is easy to operate because
of the logic control unit and LCD-display. The workflow
is optimized by adding the hose reel and the conveyor
unit.
Advantages
- Fast and
easy operation
- Safety
system to protect the operator
- Computer controlled
process (PLC)
- Colour touch-screen control
-
Storage capacity of 1200 part no
- Cutting tolerance
much better than according to DIN 20066
- Fast and
easy tool change
- Three feed speeds, 18/28/40
metre/minute
- Three cutting speeds
- Two cutting
heights
- Cutting blade completely encased
TECHNICAL DATA
Min/Max hose diameter
OD: 8-50 mm
Cutting capacity: 480-700 pcs/hour
Max load hose
reel: 400 Kg
Max. cutting length: 99999 mm
DESIGNATION
AutoCut 5-32CTS 5,5kW:
9080-01-00
ACCESSORIES
HoseReel EOS w motorized uncoiling: 9080-01-08
Conveyor 2 meter: 9080-01-21
CellCon
2000 digital measuring control: 9090-00-00
Conveyor 3
meter: 9080-01-22
CellCon 2900 digital measuring
control: 9090-00-02
Remote control, foot-pedal:
9080-01-35
Remote control, handle: 9080-00-03
KnifeCut 4-30 AC: 9080-00-06
Hose joint detection
system: 9080-00-13
