PowerCut 5-75

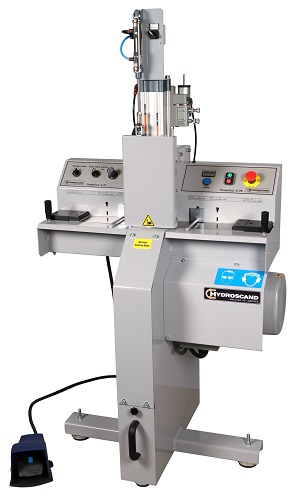

Hydroscand - PowerCut 5-75 Hose Cutting Machine

PowerCut 5-75 is an extremely strong hydraulic and pneumatically operated hose cutting machine for heavy duty production. It has an "open throat" hatch for inserting the hose from the front. The machine is also equipped with a pneumatic hose pre-bending system, three different cutting strokes, cutting blade brake and variabel cutting speed control to avoid overheating of the cutting blade. Waste is collected in a bin which is easy to empty. Power-Cut is suitable for hoses with up to a maximum of six steel braids and up to 90 mm OD.

TECHNICAL DATA
Hose Capacity 1-2-3 layers: 3/16" - 3"
Hose Capacity 4-6 layers: 1/4" - 2"
Max. hose diameter OD: 90 mm

DIMENSIONS
Length: 900 mm
Depth: 645 mm
Height: 1650 mm
Weight: 250 Kg

DESIGNATION
PowerCut 5-75 YD 400V 3-phase: 9010-00-00
PowerCut 5-75 YD 230V 3-phase: 9010-00-15
PowerCut 5-75 YD 11kW 400V 3-phase: 9010-00-03

SPARE PARTS
Cutting blade HSM 520x4x38 Smooth: 9005-00-05
Cutting blade HSM 520x4x38 Toothed: 9005-00-06
Cutting blade 520x4x50mm- TS: 9005-00-04
Adapter-ring 50x38 (for 9005-00-04): 9005-01-04
