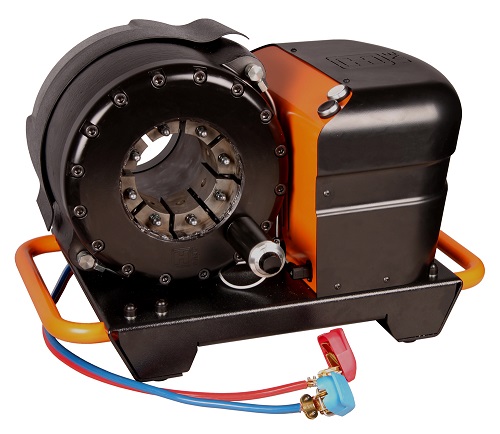

H32DC

Hydroscand - H32DC, A 12/24 volt operated crimper suitable for usage in vans or to be connected to a car battery. With this robust crimper you can crimp up to 1 ½” hoses wherever you are.

TECHNICAL DATA
Crimping range in mm: 10 - 87 mm
Crimping range in inches: 0,39 - 3,42
Crimping force in metric tons: 200
Crimping force in kN: 2000
Maximum hose size in inches: 2"
Die Set: H32
Maximum travel of dies in mm: 33 mm
Master die Diam. /Lenght in mm: 99 / 80
Master die Diam. /Lenght in inches: 3,90 / 3,15
Machine control: Micrometer Screw
Motor size in kW 12V / 24V: 1,6kW / 2,2 kW
Motor size in HP 12V / 24V: 2,1 / 3,0
Colour: Black / Orange

DESIGNATION
H32DC 12V: 9028-00-15
H32DC 24V: 9028-00-16

DIE SET
H32-10: 9060-32-10
H32-12: 9060-32-12
H32-14: 9060-32-14
H32-16: 9060-32-16
H32-19: 9060-32-19
H32-22: 9060-32-22
H32-26: 9060-32-26
H32-30: 9060-32-30
H32-34: 9060-32-34
H32-39: 9060-32-39
H32-45: 9060-32-45
H32-51: 9060-32-51
H32-57: 9060-32-57
H32-63: 9060-32-63
H32-69: 9060-32-69
H32-74: 9060-32-74
H32-78: 9060-32-78
