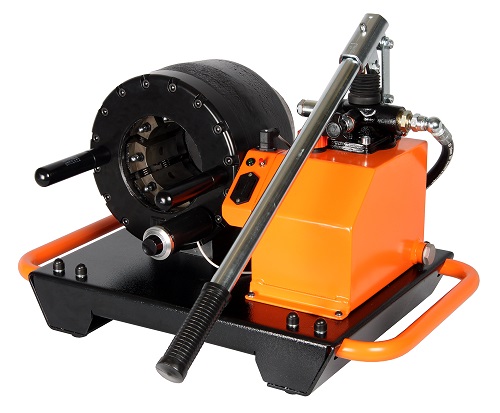

H24HP

Hydroscand - H24HP, Versitile field preformance

A larger on site crimper for the user who needs to swage big drill hoses on site. With this robust hand pumped crimper you can crimp up to 1 ½” hoses wherever you are.

TECHNICAL DATA
Crimping range in mm: 10 - 61 mm
Crimping range in inches: 0,39 - 2,40
Crimping force in metric tons: 140
Crimping force in kN: 1400
Maximum hose size in inches: 1 ½”
Die Set: H24
Maximum travel of dies in mm: 25 mm
Master die Diam. /Lenght in mm: 84 / 80
Master die Diam. /Lenght in inches: 3,31 / 3,15
Machine control: Manual
Motor size in kW 1 phase / 3 phase: 250 bar handpump
Motor size in HP 1 phase / 3 phase: 250 bar handpump
Colour: Black / Orange

DESIGNATION
H24HP: 9028-00-10

DIE SET
H20-10: 9063-20-10
H20-12: 9063-20-12
H20-14: 9063-20-14
H20-16: 9063-20-16
H20-19: 9063-20-19
H20-23: 9063-20-23
H20-27: 9063-20-27
H20-31: 9063-20-31
H20-36: 9063-20-36
H20-41: 9063-20-41
H20-47: 9063-20-47
H20-54: 9063-20-54
