H16P

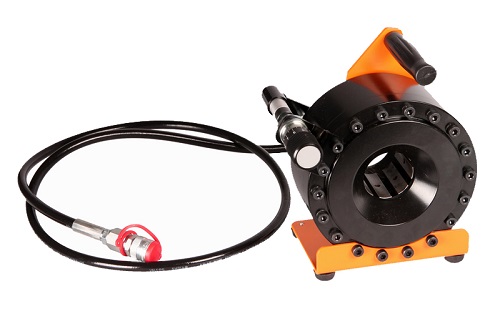

Hydroscand - H16P, True Ergonomic portability!

We have redesigned the concept from scratch to make our smallest on site crimpers more ergonomic. The perfect solution for repair work on-site with a weight at only 20 kg. H16P is equipped with a carrying handle and a two meter hose so it easily can me moved or lifted to the object to be crimped. As power source we can offer a hand pump or an air driver pump.

TECHNICAL DATA
Crimping range in mm: 10 - 45 mm
Crimping range in inches: 0,39 - 1,77
Crimping force in metric tons: 95,5
Crimping force in kN: 955
Maximum hose size in inches: 1"
Die Set: H16
Maximum travel of dies in mm: 20 mm
Master die Diam. /Lenght in mm: 39 / 64
Master die Diam. /Lenght in inches: 1,54 / 2,52
Machine control: Manual
Colour: Black / Orange

DESIGNATION
H16P: 9028-00-19

ACCESSORIES
Hand pump: 9028-02-08
Air pump: 9027-04-01

DIE SET
H16-10: 9070-16-10
H16-12: 9070-16-12
H16-14: 9070-16-14
H16-16: 9070-16-16
H16-19: 9070-16-19
H16-23: 9070-16-23
H16-27: 9070-16-27
H16-31: 9070-16-31
