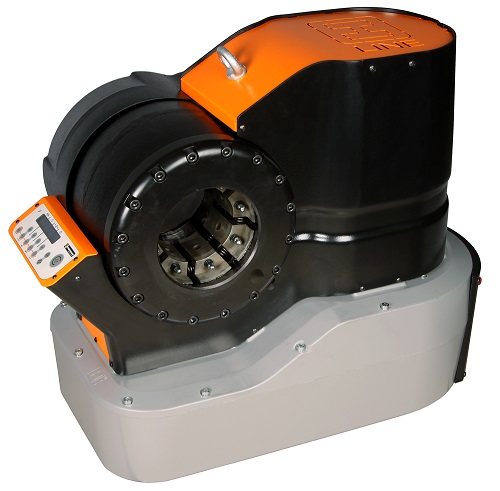

H32D AutoCal

Hydroscand - H32D AutoCal, Quality in focus

With our new D AutoCal system the machine warns you in intervals when calibration is needed. In a process using a hardened precision bar supplied with the crimper you´ll make the calibration on site yourself. The calibration will take you about 10 seconds to perform, no training required. This is just the one of the innovative features of this crimper.

TECHNICAL DATA
Crimping range in mm: 10 - 87 mm
Crimping range in inches: 0,39 - 3,42
Crimping force in metric tons: 200
Crimping force in kN: 2000
Maximum hose size in inches: 2"
Die Set: H32
Maximum travel of dies in mm: 33 mm
Master die Diam. /Lenght in mm: 99 / 80
Master die Diam. /Lenght in inches: 3,90 / 3,15
Machine control: Digital Control
Motor size in kW 1 phase / 3 phase: 1,5 kW / 4,0 kW
Motor size in HP 1 phase / 3 phase: 2,0 / 5,5

DESIGNATION
H32D AutoCal: 9028-00-03

DIE SET
H32-10: 9060-32-10
H32-12: 9060-32-12
H32-14: 9060-32-14
H32-16: 9060-32-16
H32-19: 9060-32-19
H32-22: 9060-32-22
H32-26: 9060-32-26
H32-30: 9060-32-30
H32-34: 9060-32-34
H32-39: 9060-32-39
H32-45: 9060-32-45
H32-51: 9060-32-51
H32-57: 9060-32-57
H32-63: 9060-32-63
H32-69: 9060-32-69
H32-74: 9060-32-74
H32-78: 9060-32-78
