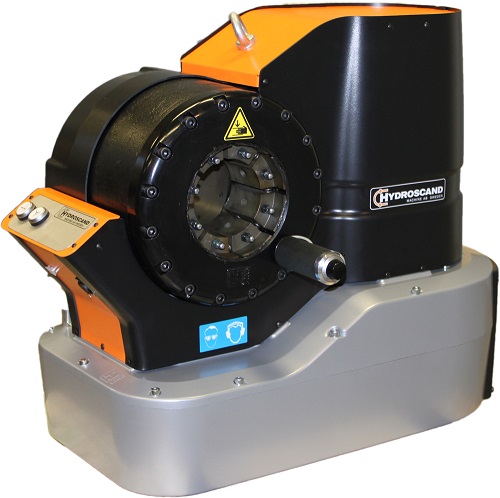

H32Basic

Hydroscand - H32Basic is a very robust machine ideally suited for smaller service facilities.

TECHNICAL DATA
Crimping range in mm: 10 - 87 mm
Crimping range in inches: 0,39 - 3,42
Crimping force in metric tons: 200
Crimping force in kN: 2000
Maximum hose size in inches: 2"
Die Set: H32
Maximum travel of dies in mm: 33 mm
Master die Diam. /Lenght in mm: 99 / 80
Master die Diam. /Lenght in inches: 3,90 / 3,15
Machine control: Manual
Colour: Black / Orange

DESIGNATION
H32Basic: 9028-00-17

DIE SET
H32-10: 9060-32-10
H32-12: 9060-32-12
H32-14: 9060-32-14
H32-16: 9060-32-16
H32-19: 9060-32-19
H32-22: 9060-32-22
H32-26: 9060-32-26
H32-30: 9060-32-30
H32-34: 9060-32-34
H32-39: 9060-32-39
H32-45: 9060-32-45
H32-51: 9060-32-51
H32-57: 9060-32-57
H32-63: 9060-32-63
H32-69: 9060-32-69
H32-74: 9060-32-74
H32-78: 9060-32-78
