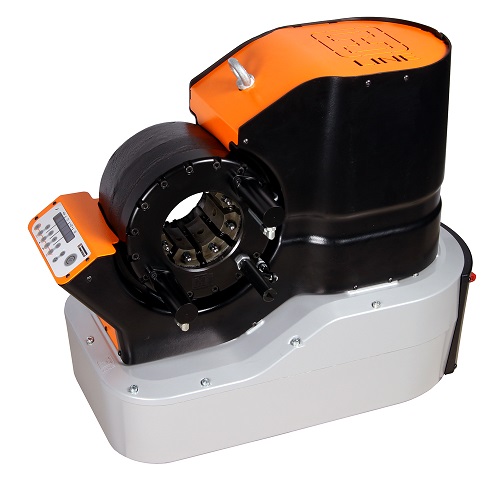

H24D AutoCal

Hydroscand - H24D AutoCal, Quality in focus

With our new D AutoCal system the machine warns you in intervals when calibration is needed. In a process using a hardened precision bar supplied with the crimper you´ll make the calibration on site yourself. The calibration will take you about 10 seconds to perform, no training required. This is just the one of the innovative features of this crimper.

TECHNICAL DATA
Crimping range in mm: 10 - 61 mm
Crimping range in inches: 0,39 - 2,40
Crimping force in metric tons: 140
Crimping force in kN: 1400
Maximum hose size in inches: 1 ½”
Die Set: H24
Maximum travel of dies in mm: 25 mm
Master die Diam. /Lenght in mm: 84 / 80
Master die Diam. /Lenght in inches: 3,31 / 3,15
Machine control: Digital Control
Motor size in kW 1 phase / 3 phase: 1,5 kW / 3,0 kW
Motor size in HP 1 phase / 3 phase: 2,0 / 4,0

DESIGNATION
H24D AutoCal: 9028-00-02

DIE SET
H20-10: 9063-20-10
H20-12: 9063-20-12
H20-14: 9063-20-14
H20-16: 9063-20-16
H20-19: 9063-20-19
H20-23: 9063-20-23
H20-27: 9063-20-27
H20-31: 9063-20-31
H20-36: 9063-20-36
H20-41: 9063-20-41
H20-47: 9063-20-47
H20-54: 9063-20-54
