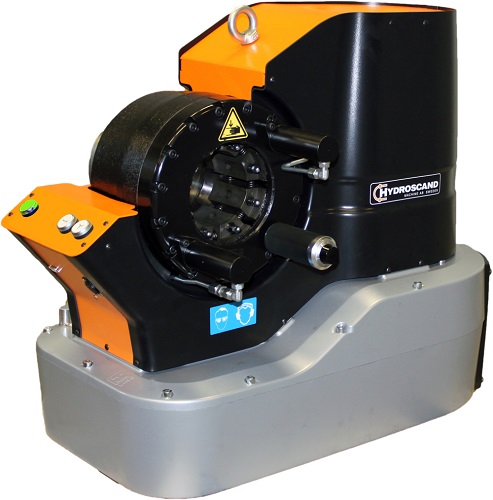

Hydroscand - H24Basic is a very robust machine
ideally suited for the smaller service facilities.
-
Fast and easy operation
- Ergonomic operation
-
Easy storage of dies
- Reliable
TECHNICAL DATA
Crimping range in mm: 10 - 61
mm
Crimping range in
inches: 0,39 - 2,40
Crimping force in metric tons:
140
Crimping force in kN: 1400
Maximum hose size
in inches: 1 ½”
Die Set: H24
Maximum travel of
dies in mm: 25 mm
Master die Diam. /Lenght in mm: 84
/ 80
Master die Diam. /Lenght in inches: 3,31 / 3,15
Machine control: Micrometer Screw
Motor size in kW 1
phase / 3 phase: 2,2 kW / 3,0 kW
Colour: Black /
Orange
DESIGNATION
H24Basic 3
phase: 9028-00-14
H24Basic single phase: 9028-00-32
DIE SET
H20-10: 9063-20-10
H20-12: 9063-20-12
H20-14: 9063-20-14
H20-16: 9063-20-16
H20-19:
9063-20-19
H20-23: 9063-20-23
H20-27: 9063-20-27
H20-31: 9063-20-31
H20-36: 9063-20-36
H20-41:
9063-20-41
H20-47: 9063-20-47
H20-54: 9063-20-54
