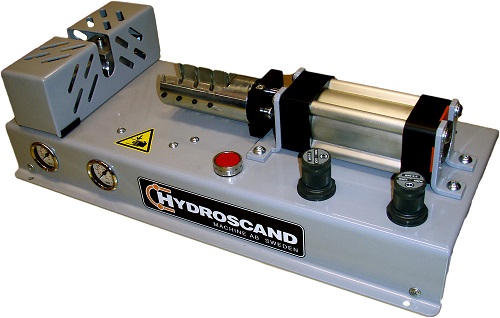

Hydroscand - MiniPush 4-20, Inserting machine
bench top model
MiniPush is a
pneumatically operated hose nipple insertion machine,
designed for hose dimensions from 1/8" to 3/4". The
machine is fast and very easy to use. The gripping- and
pushing force can be controlled to fit different hose
types.
TECHNICAL DATA
Hose/fitting capacity 1/8" to 3/4"
Push-on
capacity (theoretical) 1500 pcs/hour
Force at 8 bar
1100N
Air pressure 6-8 bar
Colour Light grey RAL
7040
DIMENSIONS
Width 535 mm
Depth 240mm
Height 150mm
Weight (excl. tools) 12 kg
PART NUMBER: 9085-00-00
Standard set
of tooling included in the machine
