AutoFeed 15-80

Hydroscand - AutoFeed 15-80, Marking Systems

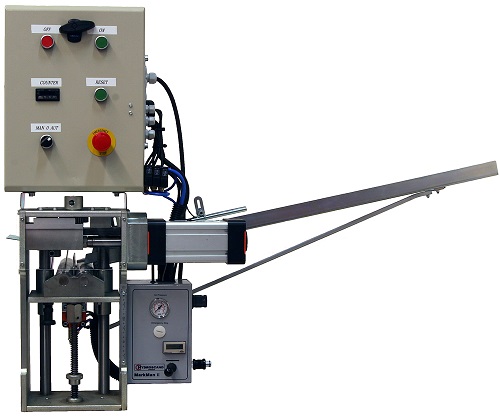

AutoFeed 15-80 is a PLC controlled automatic marking system for ferrules. Suitable for ferrules from 15 mm to 80 mm OD. This machine will decrease your marking time radically. This system can only be used in combination with our pneumatic version of MarkMan II (see technical specification MarkMan IIP)

Advantages
- Decreased labour cost
- PLC-controlled
- Easy to use
- A counter stops the machine when preset quantity has been reached.

TECHNICAL DATA
Ferrule size: 15 mm - 80 mm OD
Marking capacity: 2 000 pcs/hour
Loading capacity (dim 3/8"): 60 pcs
Voltage single phase: 230V/10A/50Hz
Air pressure: 6 bar
Colour: Zinc plated

DESIGNATION
AutoFeed 18-50: 9031-10-10

ACCESSORIES
Type case (4x8x18mm for 9031-10-03/10-04): 9031-00-04
Type case (3x6x19mm for 9031-11-03/11-04): 9031-12-04
Type print holder 2 lines (4mm, 12 types): 9031-10-03
Type print holder 3 lines (4mm, 12 types): 9031-10-04
Type print holder 2 lines (3mm, 12 types): 9031-11-03
Type print holder 3 lines (3mm, 12 types): 9031-11-04
Type print holder special on customer request: 9031-10-07
QC adapter for type print holder 3 and 4 mm: 9031-10-05
Special marking wheel: 9031-00-06
QC adapter marking wheel: 9031-10-06
